Quick Start

Please successfully run the hot update process on Win64 or MacOS Standalone platforms before attempting hot updates on Android and iOS platforms.

The Ultimate edition has similar difficulty to the Community edition, with most principles being the same. It is recommended to familiarize yourself with the Community edition before trying the Ultimate edition.

This step is exactly the same as the Community edition, see Install HybridCLR for details.

Create Unity Hot Update Project from Scratch​

The process of constructing a hot update project from scratch is quite lengthy. The code involved in the following steps can be referenced from the dhe_demo project, whose repository address is github.

Create Project​

Create an empty Unity project.

Install HybridCLR​

  • Extract hybridclr_unity.zip and place it in the project's Packages directory, rename it to com.code-philosophy.hybridclr
  • Extract the corresponding il2cpp_plus-{version}.zip according to your Unity version
  • Extract hybridclr.zip
  • Place the hybridclr directory from the extracted hybridclr.zip into the libil2cpp directory from the extracted il2cpp-{version}.zip. Ensure that the file libil2cpp\hybridclr\RuntimeApi.cpp exists, otherwise the hybridclr directory is in the wrong location.
  • Open HybridCLR/Installer, enable the Copy libil2cpp from local option, select the libil2cpp directory that was just extracted, and perform the installation
  • According to your Unity version:
    • If 6000.x.y or 2023.x.y,
      • First install Unity 2022.3.60f1
      • Copy the 2022.3.60f1\Editor\Data\il2cpp\build\deploy directory as {proj}\HybridCLRData\LocalIl2CppData-WindowsEditor\il2cpp\build\deploy\deploy-2022
      • Replace {proj}\HybridCLRData\LocalIl2CppData-WindowsEditor\il2cpp\build\deploy\deploy-2022\Unity.IL2CPP.dll with the ModifiedDlls\2022.3.60f1\Unity.IL2CPP.dll file
    • If 2022.3.x or 2021.3.x, replace {proj}\HybridCLRData\LocalIl2CppData-WindowsEditor\il2cpp\build\deploy\Unity.IL2CPP.dll with the ModifiedDlls\{verions}\Unity.IL2CPP.dll file
    • If 2020.3.x, replace {proj}\HybridCLRData\LocalIl2CppData-WindowsEditor\il2cpp\build\deploy\netcoreapp3.1\Unity.IL2CPP.dll with the ModifiedDlls\{verions}\Unity.IL2CPP.dll file
    • If 2019.4.x, no action needed as it's automatically copied during the Install process

If there's no corresponding file for your version, contact us to create one.

installer

Configure PlayerSettings​

  • Switch Scripting Backend to IL2CPP
  • Switch Api Compatibility Level to .Net 4.x (Unity 2019-2020) or .Net Framework (Unity 2021+)

player settings

Create Main Scene​

  • Create the default initial scene main.scene
  • Add the main scene to the build scene list in Build Settings

Create HotUpdate Hot Update Module​

  • Create the Assets/HotUpdate directory
  • Right-click in the directory and select Create/Assembly Definition, create an assembly module named HotUpdate

Configure HybridCLR​

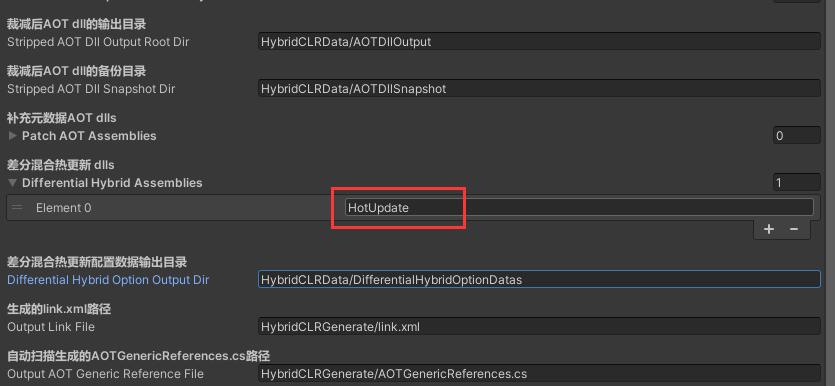

  • Open menu HybridCLR/Settings
  • Add the HotUpdate assembly to the differentialHybridAssemblies list

settings

Create Editor Script​

Create a BuildTools.cs file in the Assets/Editor directory with the following content:


using HybridCLR.Editor;
using HybridCLR.Editor.DHE;
using HybridCLR.Runtime;
using System.Collections;
using System.Collections.Generic;
using System.IO;
using UnityEditor;
using UnityEngine;

public static class BuildTools
{
    public static string GetAOTSnapshotDir(BuildTarget target)
    {
        return $"{SettingsUtil.HybridCLRDataDir}/Snapshot/{target}";
    }

    [MenuItem("Build/CreateAotSnapshot")]
    public static void CreateAOTSnapshot()
    {
        BuildTarget target = EditorUserBuildSettings.activeBuildTarget;
        string snapshotDir = GetAOTSnapshotDir(target);
        MetaVersionWorkflow.CreateAotSnapshot(target, snapshotDir);

        MetaVersionWorkflow.GenerateAotSnapshotMetaVersionFiles(null, snapshotDir);
    }

    //[MenuItem("Build/GenerateHotUpdateMetaVersionFiles")]
    public static void GenerateHotUpdateMetaVersionFiles()
    {
        BuildTarget target = EditorUserBuildSettings.activeBuildTarget;
        GenerateHotUpdateMetaVersionFiles(target);
    }

    public static void GenerateHotUpdateMetaVersionFiles(BuildTarget target)
    {
        var latestSnapshotSolutionDir = GetAOTSnapshotDir(target);
        var newHotUpdateSolutionDir = SettingsUtil.GetHotUpdateDllsOutputDirByTarget(target);
        MetaVersionWorkflow.GenerateHotUpdateMetaVersionFiles(latestSnapshotSolutionDir, newHotUpdateSolutionDir);
    }

    [MenuItem("Build/CompileAndGenerateHotUpdateMetaVersionFiles")]
    public static void CompileAndGenerateHotUpdateMetaVersionFiles()
    {
        CompileDllCommand.CompileDllActiveBuildTarget();
        GenerateHotUpdateMetaVersionFiles();
    }

    private static void CopyOriginalMetaVersions(string originalMetaVersionDir, string outputMetaVersionDir)
    {
        Directory.CreateDirectory(outputMetaVersionDir);
        foreach (var dll in SettingsUtil.DifferentialHybridAssemblyNames)
        {
            string srcMetaVersionFile = $"{originalMetaVersionDir}/{dll}.mv.bytes";
            string dstMetaVersionFile = $"{outputMetaVersionDir}/{dll}.mv.bytes";
            System.IO.File.Copy(srcMetaVersionFile, dstMetaVersionFile, true);
            Debug.Log($"Copy: {srcMetaVersionFile} -> {dstMetaVersionFile}");
        }
    }

    [MenuItem("Build/CopyHotUpdateDllAndMetaVersionFilesToHotUpdateDataDir")]
    public static void CopyHotUpdateDllAndMetaVersionFilesToHotUpdateDataDir()
    {
        BuildTarget target = EditorUserBuildSettings.activeBuildTarget;
        string outputHotUpdateResDir = $"{Application.dataPath}/../HotUpdateSnapshot/{target}";
        BashUtil.RecreateDir(outputHotUpdateResDir);


        // Copy OriginalMetaVersions
        // For convenience in demo projects, this directory is copied only when publishing hot updates.
        // In actual projects, it's recommended to copy this directory to the StreamingAssets directory during CreateAotSnapshot and publish with the package.
        CopyOriginalMetaVersions(Snapshot.GetMetaVersionDir(GetAOTSnapshotDir(target)), $"{outputHotUpdateResDir}/OriginalMetaVersions");

        // Copy HotUpdate dlls and meta version files
        string hotUpdateSnapshotDir = SettingsUtil.GetHotUpdateDllsOutputDirByTarget(target);
        foreach (var dll in SettingsUtil.DifferentialHybridAssemblyNames)
        {
            // copy dll
            string srcFile = $"{hotUpdateSnapshotDir}/{dll}.dll";
            string dstFile = $"{outputHotUpdateResDir}/{dll}.dll.bytes";
            System.IO.File.Copy(srcFile, dstFile, true);
            Debug.Log($"Copy: {srcFile} -> {dstFile}");

            // copy MetaVersion files
            string srcMetaVersionFile = $"{Snapshot.GetMetaVersionDir(hotUpdateSnapshotDir)}/{dll}.mv.bytes";
            string dstMetaVersionFile = $"{outputHotUpdateResDir}/{dll}.mv.bytes";
            System.IO.File.Copy(srcMetaVersionFile, dstMetaVersionFile, true);
            Debug.Log($"Copy: {srcMetaVersionFile} -> {dstMetaVersionFile}");
        }
    }
}


Create Hot Update Script​

Create the Assets/HotUpdate/Hello.cs file with the following code content:

using System.Collections;
using UnityEngine;

public class Hello
{
    public static void Run()
    {
        // Original code
        Debug.Log("Hello, World");
        // After hot update, change to
        // Debug.Log("Hello, HybridCLR");
    }
}

Load Hot Update Assembly​

To simplify the demonstration, we won't download HotUpdate.dll through an HTTP server, but directly place HotUpdate.dll in the StreamingAssets directory.

Create the Assets/LoadDll.cs script, then create a GameObject in the main scene and attach the LoadDll script.

using HybridCLR;
using System;
using System.Collections;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using System.Reflection;
using System.Security.Cryptography;
using System.Text;
using System.Threading.Tasks;
using UnityEngine;
using UnityEngine.Networking;

public class LoadDll : MonoBehaviour
{

    void Start()
    {
        // In Editor environment, HotUpdate.dll.bytes is already automatically loaded, no need to load, repeated loading will cause problems.
#if !UNITY_EDITOR
        LoadDifferentialHybridAssembly("HotUpdate");
#endif
        Assembly hotUpdateAss = System.AppDomain.CurrentDomain.GetAssemblies().First(a => a.GetName().Name == "HotUpdate");
        Type helloType = hotUpdateAss.GetType("Hello");
        MethodInfo runMethod = helloType.GetMethod("Run");
        runMethod.Invoke(null, null);
    }

    private void LoadDifferentialHybridAssembly(string assName)
    {
        string assFile = $"{Application.streamingAssetsPath}/{assName}.dll.bytes";
        // If it doesn't exist, use the original AOT assembly
        if (!File.Exists(assFile))
        {
            LoadImageErrorCode err = RuntimeApi.LoadOriginalDifferentialHybridAssembly(assName);
            if (err == LoadImageErrorCode.OK)
            {
                Debug.Log($"LoadOriginalDifferentialHybridAssembly {assName} OK");
            }
            else
            {
                Debug.LogError($"LoadOriginalDifferentialHybridAssembly {assName} failed, err={err}");
            }
        }
        else
        {
            byte[] dllBytes = File.ReadAllBytes($"{Application.streamingAssetsPath}/{assName}.dll.bytes");
            byte[] currentMetaVersionBytes = File.ReadAllBytes($"{Application.streamingAssetsPath}/{assName}.mv.bytes");
            byte[] originalMetaVersionBytes = File.ReadAllBytes($"{Application.streamingAssetsPath}/OriginalMetaVersions/{assName}.mv.bytes");
            LoadImageErrorCode err = RuntimeApi.LoadDifferentialHybridAssemblyWithMetaVersion(dllBytes,
                null,
                originalMetaVersionBytes,
                currentMetaVersionBytes
                );
            if (err == LoadImageErrorCode.OK)
            {
                Debug.Log($"LoadDifferentialHybridAssembly {assName} OK");
            }
            else
            {
                Debug.LogError($"LoadDifferentialHybridAssembly {assName} failed, err={err}");
            }
        }
    }
}


At this point, the entire hot update project creation is complete!!!

Test Run in Editor​

Run the main scene, and the Console window will print 'Hello, World', indicating that the code is working properly.

Build Game​

  • Run menu HybridCLR/Generate/All to perform necessary generation operations. This step cannot be omitted!!!
  • Open the Build Settings dialog, click Build, select output directory {build}, and execute the build
  • Run Build/CreateAotSnapshot to create the AOT snapshot generated during build. This step must be after Build, because the AOT snapshot must copy the dll generated during build, not the dll generated during HybridCLR/Generate/all.

The AOT snapshot generated by CreateAotSnapshot contains the following content:

  • All AOT dlls
  • InjectRules files, which are placed in the InjectRules directory
  • Meta version files corresponding to AOT dlls, which are placed in the MetaVersions directory
  • manifest.json, mainly recording the DHE assembly list
  • signature-mapper.json
tip

The AOT snapshot directory created by Build/CreateAotSnapshot should be added to version control for generating meta version files for hot update dlls in the future.

Initial Package Test​

  • Run {build}/Xxx.exe, there should be a Hello, World log in the Player Log file, indicating that the original code was executed!

Test Hot Update​

  • Please ensure that the Build Game step has executed Build/CreateAotSnapshot, run it once, don't run it multiple times
  • Modify Debug.Log("Hello, World") to Debug.Log("Hello, HybridCLR") in the Hello::Run function
  • Run Build/CompileAndGenerateHotUpdateMetaVersionFiles to generate hot update dll and corresponding meta version files
  • Run Build/CopyHotUpdateDllAndMetaVersionFilesToHotUpdateDataDir. It will copy the hot update dll and corresponding meta version files to the {proj}/HotUpdateSnapshot/{buildTarget} directory
  • Manually copy all files from the {proj}/HotUpdateSnapshot/{buildTarget} directory to the {build}\StreamingAssets directory
  • Run again, there should be a Hello, HybridCLR log in the Player Log file

Hot update is now complete!!!
